Name: Hydrogenation Purifying Unit 600 Scfm 99.999% N2 Psa Nitrogen Gas Plant
Brand: SUMAIRUI GAS
SKU: OSP-H
Rating: 5 (170 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Flow: 100-10000Nm3/hr

Purity: 99.999-99.9999%

Ppm: ＜3

Consume: Hydrogen And Water

Raw Nitrogen: ＞99%

Hydrogen Required: ＞99.5%

Cooling Type: Water

Application: Chemical Industry

Working Duration: 24 Hrs Non-stop

Operation Mode: Fully Automatic

Control Type: Remote Start And Stop

Data Upload: Modbus 485, Ethernet,Profibus, DP，Hart,TCP Etc

Temperature Control: Schneider

Heating Rod: Included

Heating Temperature: 150℃

High Purity N2: 99.9995%

Towers: Warming Type

Color: Available Customized

Weight: 500KG

Working Mode: Fully Automatic

Control System: Advanced

Durability: High

Flow Rate: High

Installation: Easy

Maintenance: Easy

Noise Level: Low

Operating Temperature: Wide Range

Power Consumption: Low

Pressure Drop: Low

Pressure Range: Wide Range

Product Name: Hydrogenation Purifier

Purification Capacity: High

Purification Efficiency: High

Safety System: Advanced

After-sale Service: Online Technical Support

Capacity: 1000L/H

Material: Stainless Steel

Package: Wooden Case

Power: 2.2KW

Pressure: 0.2-0.6MPa

Size: Customized

Temperature: 0-80℃

Voltage: 220V/380V

Warranty: 1 Year

Highlight:

Hydrogenation Purifying Unit 600 Scfm

Hydrogenation Purifying Unit 99.999

n2 plant

Basic Infomation

Place of Origin: SUZHOU, CHINA

Brand Name: SUMAIRUI GAS

Certification: ISO9001, CE, BV, SGS, TUV, ASME, GOST,NB,NR ETC

Model Number: OSP-H

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Exporting wooden case /Film packing

Delivery Time: 30-45 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 100 sets/months

Gallery

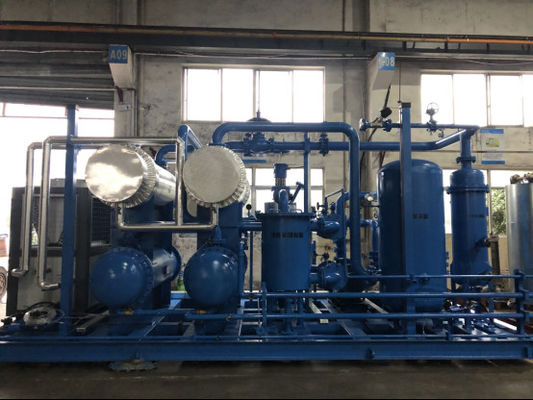

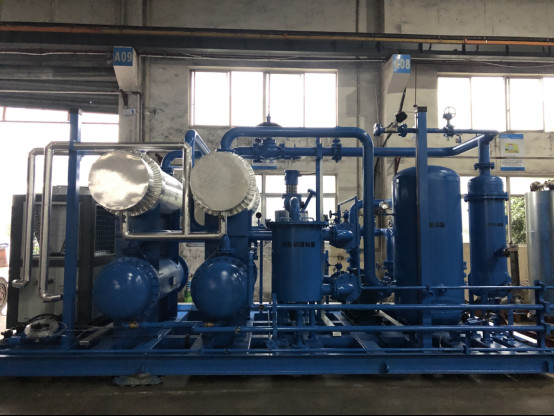

Hydrogenation Purifying Unit 600 Scfm 99.999% N2 Psa Nitrogen Gas Plant

Product Description

Hydrogenation Purifying Unit 600 scfm 99.999% with Automatic Interlocking & Emptying for higher purity N2 making

Technical indicators:

Process Principle:

The deoxygenation equipment through hydrogenation makes use of common purity nitrogen as the raw material and through deoxygenation by hydrogenation accompanied by catalysts, cooling, absorption and dryness and finally, filtering of impurity, water and dust in the nitrogen gas to get high purity nitrogen.

Main Characters:

1. Advanced technique------The highly active deovo catalyst which is rather advanced in the country is adopted. The activity is excellent and can be regenerated without heating.
2. Automatic control------This equipment adopt the Siemens PLC control system with automatic switch to control work regeneration, with optional quality flow controller, and with automatic hydrogenation under controlled ratio.
3. Reliable running status-----This equipment adopts German pneumatic valves and Japanese RKC temperature controller.
4. Reasonable design------The totally enclosed design ensures a compact structure, a good looking appearance and a small floor space.

Handling capacity of airflow: 10~500Nm³/h
Purity of nitrogen raw material: >=99%
Purity of nitrogen product: 99.9995% O2< =5ppm H₂: Slight amount
Dew point: ≤-70
Outlet pressure of nitrogen product: 0.1~0.6Mpa.

Hydrogenation Purifying Unit 600 Scfm 99.999% N2 Psa Nitrogen Gas Plant 0

Hydrogenation Purifying Unit 600 Scfm 99.999% N2 Psa Nitrogen Gas Plant 1
