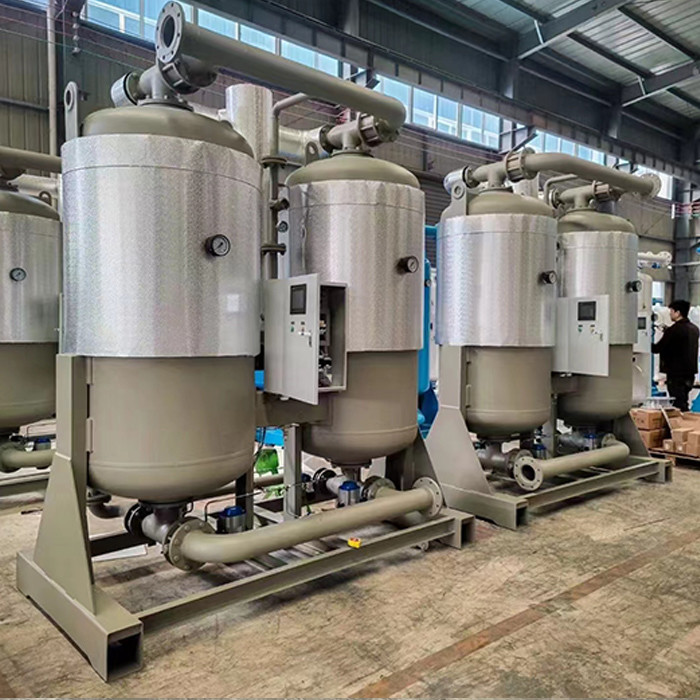

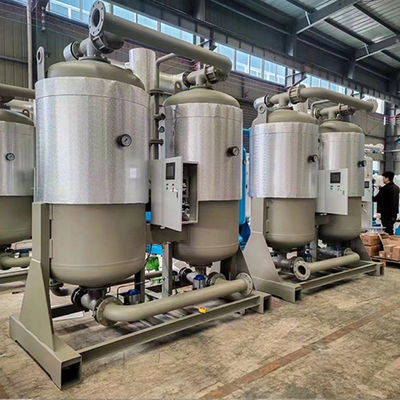

Blower Purge Diy Air Compressor Desiccant Dryer Regeneration -80 DPD 150m3

-80 DPD 150m3 Reliable air compression desiccant air dryer used for screwing & centrifugal air compressor with purging

Working condition and technical data

Minimum inlet air temperature:100℃
Pressure range:0.5-1.0Mpa
Pressure dew point:-20℃ ~ -40℃
Regeneration gas consumption:≤1.5%
Inlet oil content:≤0.1PPm
Control mode: PLC control
Power supply: AC 220 V / 50 Hz
Period: T = 6-8 (H)
Design condition: inlet temperature: 120 ℃
Working pressure: 0.8MPa
Inlet cooling water temperature: 32 ℃
Pressure loss: ≤ 5% of design pressure
Note: the inlet temperature is higher than 140 ℃ and other special requirements are welcome to customize.

Characteristic of heat of compression desiccant air dryer

• High efficiency and energy saving;
• The pressure dew point can reach - 20 ℃ ~ - 40 ℃
• It is equipped with imported brand PLC controller to realize chain function;
• High quality switching valve, stable and reliable, can ensure the integrity of the working process, prolong the working life of components;
• Special adsorbent with high hygroscopicity is selected with uniform shape and size, high strength, low dew point, less dust and long service life;
• The unique gas distribution design ensures that the gas distribution is uniform when the high temperature gas is heated and regenerated and the low temperature gas adsorption mode is adopted, so that the adsorbent at the edge of the adsorption tower is fully utilized, and the stroke tunnel flow effect is avoided;
• Three level drainage function: liquid level, time and manual operation;
