Name: Palladium Catalyst Hydrogenation Purifier Psa Nitrogen Gas Generator Metallurgy Field
Brand: SUMAIRUI GAS
SKU: OSP-H
Rating: 4.5 (193 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Flow: 100-10000Nm3/hr

Purity: 99.999-99.9999%

Ppm: ＜3

Consume: Hydrogen And Water

Raw Nitrogen: ＞99%

Hydrogen Required: ＞99.5%

Cooling Type: Water

Application: Chemical Industry

Working Duration: 24 Hrs Non-stop

Operation Mode: Fully Automatic

Control Type: Remote Start And Stop

Data Upload: Modbus 485, Ethernet,Profibus, DP，Hart,TCP Etc

Temperature Control: Schneider

Heating Rod: Included

Heating Temperature: 150℃

High Purity N2: 99.9995%

Towers: Warming Type

Color: Available Customized

Weight: 500KG

Working Mode: Fully Automatic

Control System: Advanced

Durability: High

Flow Rate: High

Installation: Easy

Maintenance: Easy

Noise Level: Low

Operating Temperature: Wide Range

Power Consumption: Low

Pressure Drop: Low

Pressure Range: Wide Range

Product Name: Hydrogenation Purifier

Purification Capacity: High

Purification Efficiency: High

Safety System: Advanced

After-sale Service: Online Technical Support

Capacity: 1000L/H

Material: Stainless Steel

Package: Wooden Case

Power: 2KW

Pressure: 0.1-0.4MPa

Size: Customized

Temperature: -20-120℃

Voltage: 220V/380V

Warranty: 1 Year

Filter Area: 2㎡

Filter Efficiency: 99.99%

Filter Precision: ≤1μm

Filter Quantity: 2

Filter Replacement Cycle: 3-6 Months

Noise: ≤70dB

Highlight:

Palladium catalyst Hydrogenation Purifier

Hydrogenation Purifier psa

psa nitrogen gas generator

Basic Infomation

Place of Origin: SUZHOU, CHINA

Brand Name: SUMAIRUI GAS

Certification: ISO9001, CE, BV, SGS, TUV, ASME, GOST,NB,NR ETC

Model Number: OSP-H

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Exporting wooden case /Film packing

Delivery Time: 30-45 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 100 sets/months

Gallery

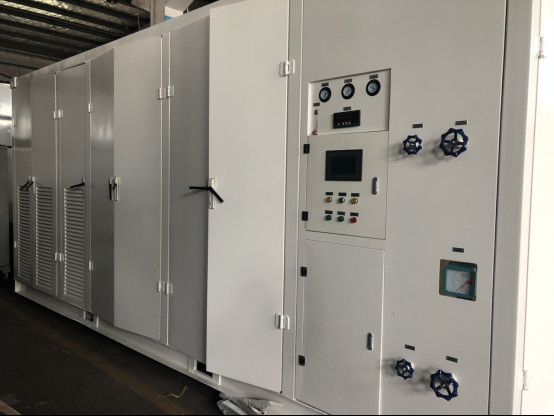

Palladium Catalyst Hydrogenation Purifier Psa Nitrogen Gas Generator Metallurgy Field

Product Description

Palladium catalyst high purity hydrogenation purifier to get 99.9995% purity N2 used for metallurgy field brightness

Technical indicators:

The raw nitrogen will be produced by PSA or membrane separation, and mixed with small amount of hydrogen. Residual oxygen reacts with hydrogen to produce water vapor in a reactor filled with metal palladium catalyst, therefor, most of the water vapor is condensed through the after-cooler, and the condensed water is removed through the high-efficiency water separator. After deep dehydration and dust removal in the dryer, the high purity nitrogen is obtained finally.

By the way, The adsorption dryer can make the dew point of product gas below - 70℃. The purity of product gas continuously monitored online by analyzer.

The chemical equation is: 2H2 + O2 = 2H2O + Heat

In order to ensure that oxygen is completely removed, the actual ratio of H2 to O2 is slightly higher than the theoretical value, so that the reaction is very complete to obtain the high purity nitrogen, and the purity can reach more than 99.9995% after refining.

Main Characters:

1. Advanced technique------The highly active deovo catalyst which is rather advanced in the country is adopted. The activity is excellent and can be regenerated without heating.
2. Automatic control------This equipment adopt the Siemens PLC control system with automatic switch to control work regeneration, with optional quality flow controller, and with automatic hydrogenation under controlled ratio.
3. Reliable running status-----This equipment adopts German pneumatic valves and Japanese RKC temperature controller.
4. Reasonable design------The totally enclosed design ensures a compact structure, a good looking appearance and a small floor space.

Handling capacity of airflow: 10~500Nm³/h
Purity of nitrogen raw material: >=99%
Purity of nitrogen product: 99.9995% O2< =5ppm H₂: Slight amount
Dew point: ≤-70
Outlet pressure of nitrogen product: 0.1~0.6Mpa.

Palladium Catalyst Hydrogenation Purifier Psa Nitrogen Gas Generator Metallurgy Field 0

Palladium Catalyst Hydrogenation Purifier Psa Nitrogen Gas Generator Metallurgy Field 1
